16M Aluminium Radiator Brazing Furnace Nitrogen Protective Atmosphere

Product Categories

Wuxi Wondery Industry Equipment Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Place of Origin : Jiangsu, China (Mainland)

Brand Name : WONDERY

Certification : CE

Supply Ability : 40 Set/Sets per Year

Packaging Details : nude package duly fixed inside the container; suitable for sea transportation

MOQ : 1 Set

Price : Negotiable

Model Number : NB-1200-200-16M

Delivery Time : 90 Days

Name : Aluminium Radiator Brazing Furnace

Brazing muffle length : 16M

Application : Aluminum radiators

mesh belt speed : 200-1400mm depending on furnace size

rated working temperature : 650 degree celcius

Drying temperature : 230 degree celcius

Contact Now

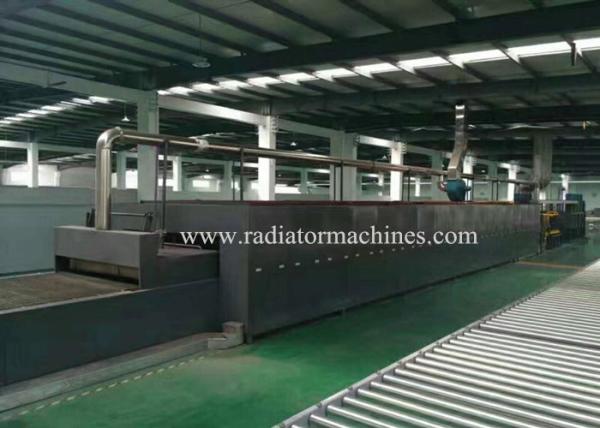

16M Aluminium Radiator Brazing Furnace Nitrogen Protective Atmosphere

Application

The aluminium radiator brazing furnace works under the nitrogen protective atmosphere and employs non-erosive brazing material. The continuous

aluminium radiator brazing furnace is applied to brazing of aluminum intercooler, radiator, automobile air conditioning condenser,

evaporator, aluminum oil cooler, etc.

Model	Rated heating power			Temperature	Working size (mm)	Brazing oven effective length	Total length
Model	Degreasing Oven	Drying Oven	Brazing Oven	Temperature	Working size (mm)	Brazing oven effective length	Total length
NB-450-200-6M	Non	50KW	150KW	Brazing temperature: 630°C; Drying temperature: 250°C Degreasing temperature: 180°C	450×200	6m	23.5m
NB-600-200-6M	Non	60KW	180KW		600×200	6m	23.5m
NB-800-200-6M	Non	70KW	210KW		800×200	6m	23.5m
NB-1000-200-6M	Non	85KW	245KW		1000×200	6m	23.5m
NB-600-200-8M	50KW	70KW	240KW		600×200	8m	37.7m
NB-800-200-8M	60KW	85KW	280KW		800×200	8m	37.7m
NB-1000-200-8M	76KW	108KW	330KW		1000×200	8m	37.7m
NB-800-200-11M	85KW	120KW	380KW		800×200	11m	48.4m
NB-1000-200-11M	108KW	150KW	450KW		1000×200	11m	48.4m
NB-1200-200-11M	120KW	170KW	520KW		1200×200	11m	48.4m
NB-1200-200-16M	150KW	220KW	760 KW		1200×200	16m	65.0m
NB-800-220-8M	70KW	85KW	280KW		800×220	8m	38.9m

Note: The heating furnace (brazing furnace section of the heat treatment line) is 8m, 11m, 12or 16m long based on the

productivity of the line required by the customer.

Company Introduction

Our company mainly supplies the radiator making machines such as aluminum radiator fin machine, core builder, aluminum

radiator plastic tank crimpingmachine, air leak tester, header mold, plastic tank mold, aluminium radiator brazing furnace, etc.
